Cold Rolling or Hot Rolling? How Spring Wire Microstructure, Tolerances & Performance Diverge

For spring wire and strip, the definitive boundary is deformation temperature relative to the alloy recrystallization threshold, and how that dictates dislocation density, grain morphology, surface integrity, and the downstream coiling envelope.

Specifying merely “cold rolled” or “hot rolled” on an engineering inquiry is incomplete. The actual manufacturing path frequently begins with hot-rolled wire rod as the raw intermediate, followed by descaling, patenting heat treatment, and precision cold drawing or flat wire rolling to achieve final mechanical temper. Distinguishing raw hot-rolled rod from cold-drawn finished wire is vital for setting proper procurement tolerances.

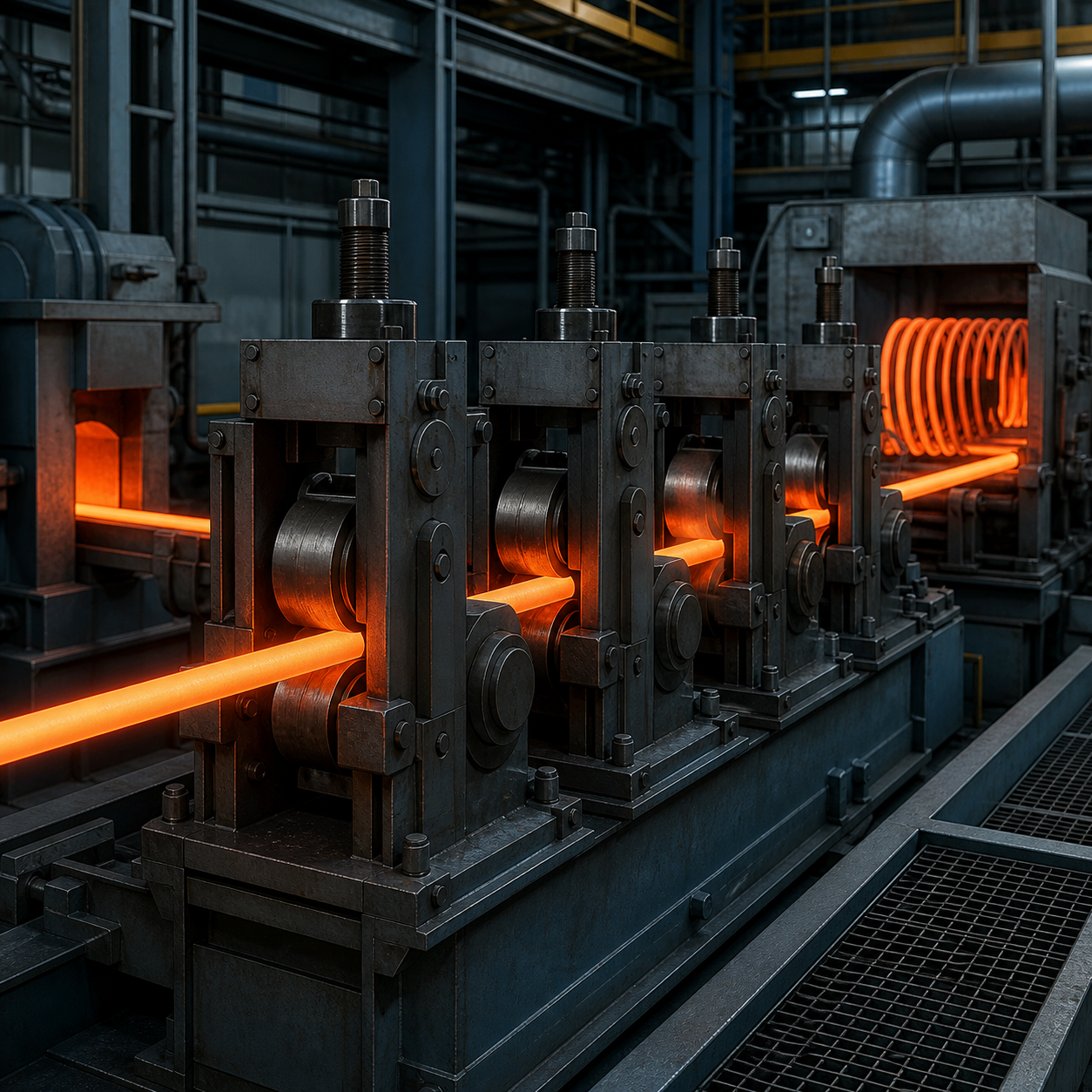

High-temperature hot rolling mill reducing billet into coiled spring steel wire rod
SchematicHot rolling emphasizes high-temperature reduction and controlled Stelmor cooling.
Precision cold drawing dies and turks-head rollers reducing and sizing finished spring wire
SchematicCold working governs strain-hardening, surface smoothness, and tight tolerances.
Microstructural comparison of equiaxed recrystallized hot grains vs elongated fibrous cold-drawn grains
SchematicMicrostructure dictates downstream coiling ductility and fatigue limits.

Note: Figures represent theoretical mechanical and metallurgical schematics for engineering education.

Deformation Temperature → Microstructure State → Procurement MetricsHot Rolling (Above Recrystallization)Deformation occurring in the dynamic recovery regime (> 850°C)High reduction capacity; refined pearlite via controlled Stelmor cooling.Surface develops mill scale; precision sizing deferred to subsequent cold stages.Cold Rolling / Drawing (Below Recrystallization)Deformation at ambient temperatures (below ~450°C)Severe work-hardening, fibrous grain texture, and locked residual stresses.High dimensional accuracy (within ±0.01mm) and polished surface finish.Note: Exact recrystallization thresholds vary with alloy composition, true strain, and line speed; round wire is predominantly cold-drawn.
Figure: Process divergence between primary hot reduction and secondary precision cold finishing.

1. Core Difference: Recrystallization Dictates Strain Hardening

During hot rolling, steel is deformed above its recrystallization temperature (typically 850°C–1050°C). Thermally activated dynamic recovery and recrystallization continuously annihilate accumulating dislocations. This permits massive cross-sectional area reductions without cracking, allowing steelmakers to engineer the microstructure (pearlite lamellar spacing and grain size) via controlled finish rolling temperatures and cooling rates.

During cold rolling and drawing, processing occurs at ambient room temperatures far below the recrystallization threshold. Plastic strain generates tangled dislocation forests, crystallographic fiber textures, and directional residual stresses. Consequently, ultimate tensile strength (Rm) and yield strength surge dramatically, while ductility (elongation A and reduction of area Z) is consumed.

Comparison DimensionHot-Rolled Wire RodCold-Drawn / Cold-Rolled WireProcurement Implication
Deformation StateHigh-temperature thermal plastic flow; low yield resistance suitable for continuous high-speed reduction.Ambient temperature strain-hardening; requires specialized carbide dies and extreme boundary lubrication.Clarify raw delivery state and whether downstream secondary drawing or hardening is planned.
Microstructure ControlFinish rolling temperature, layhead coil temperature, and Stelmor fan cooling dictate fine pearlite lamellar spacing.Elongated fibrous grain structure with locked residual stresses; die geometry creates cross-sectional hardness gradients.High fatigue life requires homogeneous fine pearlite rather than coarse ferrite-pearlite banding.
Surface ConditionEncased in thick thermal iron oxide scale (wüstite/magnetite); mandates mechanical descaling or acid pickling.Smooth, bright, or phosphate-coated finish (Ra < 0.4μm); free of mill scale and loose rust.Specify maximum allowable surface flaw depth (e.g. < 1% of wire diameter) and zero decarburization.
Dimensional PrecisionBroad tolerances (typically ±0.15mm to ±0.30mm); serves as an intermediate feedstock.Precision tolerances conforming to h8/h9 grades (within ±0.005mm to ±0.015mm).Define diameter, ovality tolerance, and straightness requirements explicitly.
Downstream CoilingHigh ductility facilitates heavy cold drawing into fine wire, but cannot be coiled directly into precision springs.High elastic limit allows direct CNC spring coiling, but low residual ductility limits severe bending radii.Match spring coiling index (D/d) to wire tensile class (e.g., EN 10270-1 SH/DH).

2. Three Critical Reminders from Metallurgical Research

1. Hot Rolling Does Not Merely Reduce Diameter

Investigations on 60Si2MnA spring steel rod (Ai et al.) prove that finish rolling temperature and subsequent controlled cooling velocity determine pearlite colony size, interlamellar spacing, and proeutectoid ferrite morphology, directly governing cold-drawing ductility.

2. Do Not Conflate Cold Rolling with Cold Drawing

Specialty steel research (Zhu & Liu) comparing 3-roll continuous cold rolling with conventional die drawing revealed marked differences in surface residual stresses, oxide film adhesion, and high-temperature oxidation kinetics. Round wire is primarily drawn; flat strip is rolled.

3. Die Geometry Dictates Hardness Gradients

Cold working studies (Bandar et al.) show that die approach angles govern plastic shear strain distribution, creating distinct core-to-surface microhardness differentials. Two wires with identical nominal tensile ratings can exhibit vastly different coiling springback.

4. Standards Govern Delivery State Categories

International standards strictly separate delivery categories: BS EN 10270-1 covers patented cold-drawn carbon wire, EN 10270-2 covers oil-quenched and tempered alloy wire, and EN 10270-3 covers stainless spring wire.

3. Three-Step RFQ Sequence for Procurement Engineers

  1. Define the End Component: Specify whether the finished part is a round wire helical compression spring, an edge-wound flat wire wave spring, or an intermediate drawn wire product.
  2. Declare the Exact Delivery State: Clearly stipulate supply condition: hot-rolled wire rod, patented cold-drawn wire (EN 10270-1), cold-rolled flat profile, oil-tempered alloy wire (EN 10270-2), or stainless spring steel (EN 10270-3).
  3. Lock in Acceptance Metrics:Mandate chemical composition limits, diameter and ovality tolerances, total decarburization depth (< 1% diameter), maximum seam defect depth, tensile range (Rm), and wrap/torsion test compliance.
Key Engineering Takeaway: Hot rolling builds the internal metallurgical structure and heavy deformation capacity; cold rolling and drawing refine dimensions, surface finish, and elastic strength. In the spring industry, they are complementary sequential stages, not competing alternatives.

Academic References & Standards

  1. J. H. Ai et al., “Effect of controlled rolling and cooling on the microstructure and mechanical properties of 60Si2MnA spring steel rod,” Journal of Materials Processing Technology 160(3), 390–395 (2005).
  2. W. C. Zhu & Y. Z. Liu, “Improvement of the structure properties for special steel wire by cold-rolling technique,” Journal of Materials Processing Technology 48(1–4), 469–474 (1995).
  3. A. R. Bandar et al., “Impact of Die Geometry on Microhardness and Grain Size of Cold-Drawn Steel Wire,” Materials and Manufacturing Processes 19(3), 507–521 (2004).
  4. BS EN 10270-1:2024, Steel wire for mechanical springs — Patented cold drawn unalloyed spring steel wire.
  5. EN 10270-2:2011, Steel wire for mechanical springs — Oil hardened and tempered spring steel wire.
