Forming Metallurgy2026-08-22 · 11 min read

Coiling or Stamping? Appearances Can Be Deceiving — Stress States & Failure Mechanics Differ Fundamentally

Coiling forms continuous wire into 3D spatial curves; stamping shears, bends, and draws flat sheet strips inside hard tooling dies. The two manufacturing methods solve completely different geometric and mechanical challenges.

“Can we eliminate high coiling setup costs by directly stamping this spring component?” This question cannot be resolved solely by volume. The primary determination is whether the feedstock is continuous round/profile wire or sheet/strip; the second is whether functional spring forces are transmitted axially, radially, or in a planar vector; only then do tooling amortizations and machine cycle rates matter.

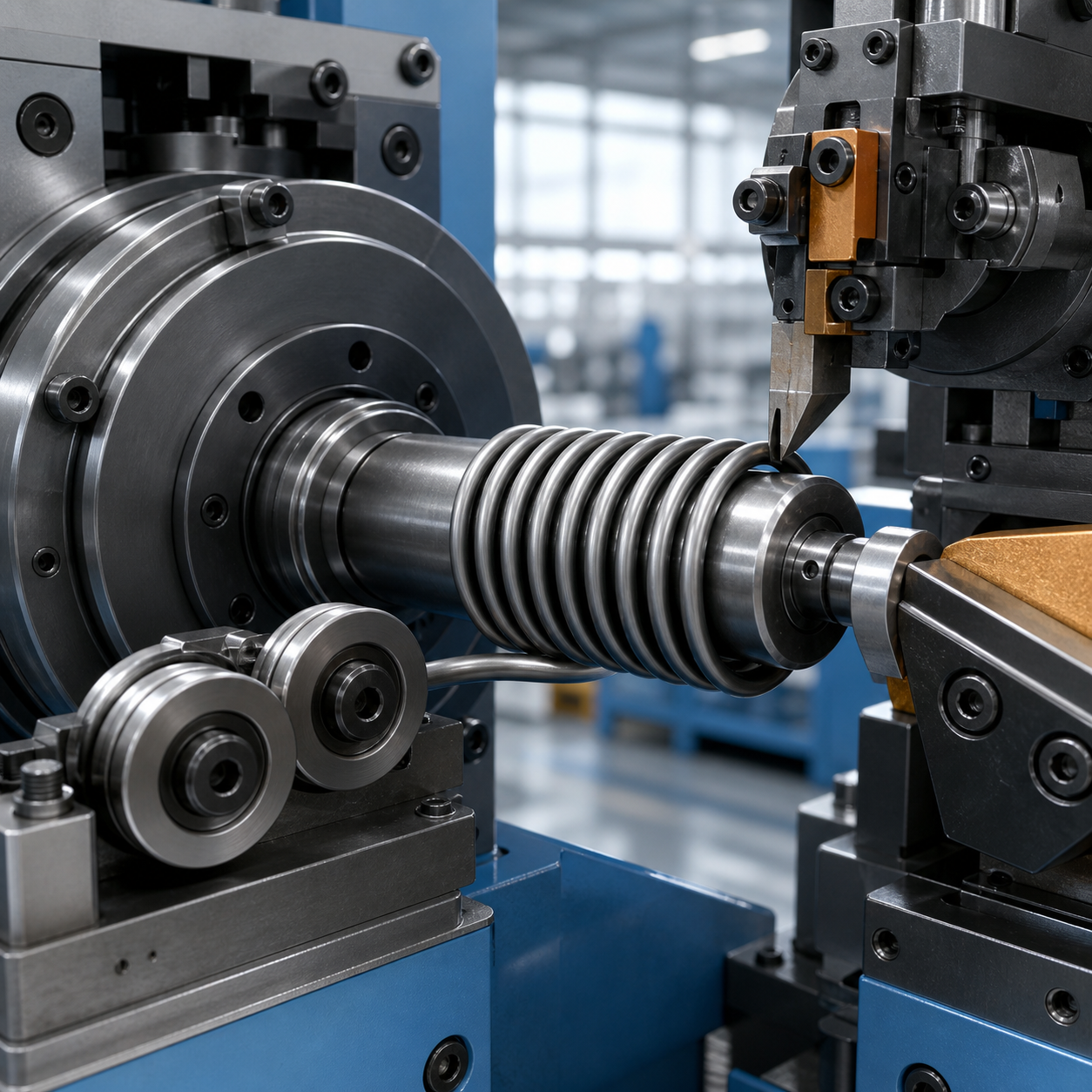

Continuous wire stock entering multi-axis coiling machine forming spatial spring helix
SchematicContinuous coiling transforms linear wire into a 3D spatial elastic helix.

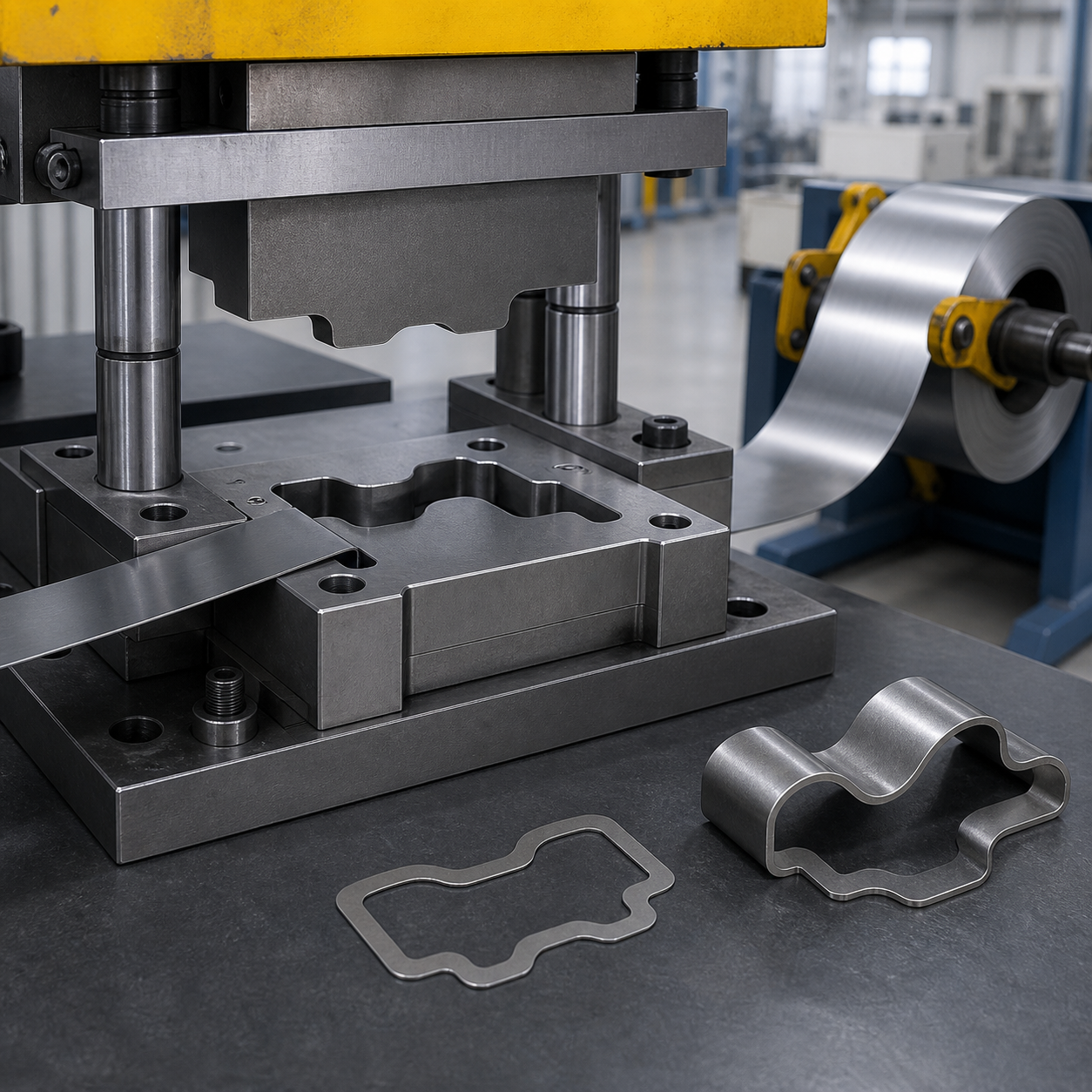

Flat metal strip sheared and bent inside progressive stamping die tooling
SchematicDie stamping replicates planar or contoured profiles directly from sheet metal.

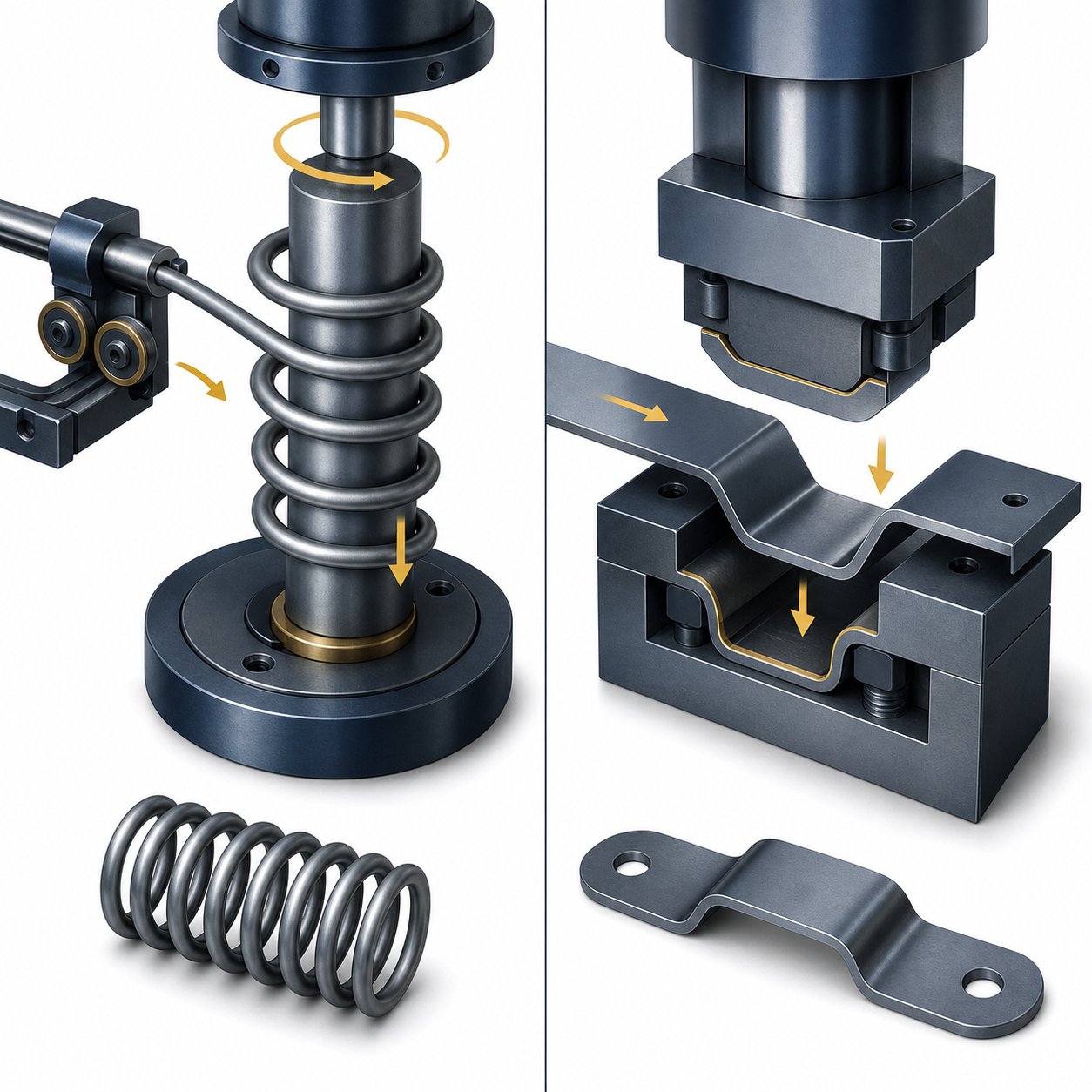

Side-by-side comparison of wire coiling vs sheet stamping cross sections and stress paths
SchematicSelection starts with cross-section profile and operational force vectors.

Note: Figures represent theoretical mechanical and tooling schematics for engineering education.

1. What Do the Two Processes Fundamentally Transform?

Engineering DimensionWire CoilingSheet Stamping
Feedstock Material FormContinuous round wire, rectangular flat wire, or profiled cross-sections fed from spools into CNC forming pins.Flat sheet strips or coiled flat strip processed through uncoilers into progressive stamping press dies.
Geometric LogicGuides wire around an arbor into helical, conical, or wave geometries; cross-sectional shape is conserved along the length.Blanks outer contours from sheet, then bends or draws profiles; edge burrs and strip thickness dictate performance.
Typical Spring ArchitecturesHelical compression springs, extension springs, torsion springs, wire forms, and edge-wound flat wire wave springs.Belleville disc springs, flat leaf springs, snap rings, spring clips, electrical terminals, and stamped wave washers.
Primary Metallurgical RisksLow spring index (D/d < 4) longitudinal splitting, wire surface scoring, coiling springback, and high residual tensile stresses.Shear edge burrs, micro-tearing along blanked edges, material planar anisotropy, wrinkling, and multi-axis springback.
Economic ProfileTooling-free CNC changeovers; ideal for prototyping, low-to-medium batches, and rapid dimensional modifications.High initial die tooling investment ($3,000–$25,000); optimal for ultra-high annual production volumes exceeding 100,000 units.

2. Why Must Coiled Springs Undergo Stress-Relief Heat Treatment?

When spring wire is bent into a spatial helix, the inner diameter of the coil experiences severe compressive plastic strain while the outer radius undergoes heavy tensile elongation. Upon clearing the coiling tools, massive residual stresses remain locked in the cross-section. In-situ neutron diffraction measurements conducted by Matejicek et al. on cold-coiled automotive suspension springs revealed internal peak residual stresses approaching the yield strength of the steel.

Subsequent low-temperature stress relief tempering (typically 200°C–380°C depending on alloy) relaxes these hazardous internal tensile peaks without softening the base hardness. Furthermore, fracture mechanics investigations on low spring index coiling (Prawoto et al.) prove that arbor geometry and guide tool alignment directly alter residual stress gradients, dictating whether wire splits longitudinally during coiling.

Coiling Process Note: Industrial spring coiling is not simply wrapping wire around a pin; it is an engineered plastic deformation process requiring synchronized feed servos, deflection tool angles, pitch wedges, and cutoff clearances. Design reviews must calibrate the allowable coiling window against wire heat lots and ductility.

3. Why Are Springback and Shear Burrs Persistent Stamping Challenges?

Stamping is a combination of localized shear fracture (blanking) and plastic deformation (forming). Upon die retraction, the release of elastic strain invariably triggers springback. Die clearance, cutting edge sharpness, and raw strip thickness govern the ratio between shear burnish zone, fracture zone, and rollover burrs. Peer-reviewed sheet forming studies (Schaeffer et al., Yoneyama et al.) confirm that burrs act as severe stress concentrations, initiating fatigue micro-cracks under cyclic loading.

If an application requires 3D spatial compression, attempting to stamp a flat sheet cannot duplicate the active coil length and compliance of a coiled spring. Conversely, if a design calls for a flat retaining clip, coiling round wire introduces unnecessary structural bulk and assembly complexity. Process selection must proceed backward from load paths and enclosure geometry, not forward from machine availability.

4. Four Questions for First-Round Process Selection

Force Vector: Is the working load transmitted along an axial/radial 3D spatial curve, or across a 2D planar profile?
Raw Stock Form: Is feedstock continuous round wire, flat profiled wire, or sheet strip/coil?
Tolerance Governance: Are tolerances controlled by CNC coiling pin servomotors or hard die clearances and blanking margins?
Economic Break-Even: Does the annual production volume justify dedicated stamping dies, or is CNC coiling more economical?
Engineering Conclusion: Neither coiling nor stamping is inherently superior. Coiling excels at transforming continuous wire into 3D spatial elastic geometries without tooling fees. Stamping excels at replicating flat, contoured, or Belleville disc geometries at high speeds. Verify cross-sections and force vectors before debating tooling costs.

Academic References & Handbooks

  1. J. Matejicek et al., “Residual stresses in cold-coiled helical compression springs for automotive suspensions measured by neutron diffraction,” Materials Science and Engineering: A 367, 306–311 (2004).
  2. Y. Prawoto et al., “Fracture Mechanics Approach to Splitting in Low Spring Index Cold Coiling Process,” Journal of Failure Analysis and Prevention 19, 738–751 (2019).
  3. R. B. Schaeffer et al., “A numerical and experimental approach to optimise sheet stamping technologies: Part I: mild steel press-forming,” Materials & Design 22(4), 285–298 (2001).
  4. T. Yoneyama et al., “Production method on pipe of thin-spring steel sheet,” Journal of Materials Processing Technology 115(1), 92–96 (2001).
  5. L. Godfrey, “Steel Springs,” in ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys, pp. 302–326 (1990).
