DIN 2093 Standard Industrial Disc Springs
Strictly manufactured to DIN 2093 / DIN EN 16983 standards across Groups 1, 2, and 3. Highly uniform load deflection performance, serving as the benchmark standard for heavy-duty preloading.
DIN 2093 / DIN EN 16983 German Standards · High Force in Millimeter Heights · 10,000,000+ Cycles
Industrial Heavy-Duty Precision Disc Springs
Exceptional energy storage density delivering tens of tons of force in minimal axial envelopes. Supporting parallel stacking for higher loads, series stacking for extended travel, and progressive variable stiffness—widely deployed in high-temp flange bolting, CNC spindle drawbars, and elevator safety gears.
500 kN+
Single Stack Load Capacity
10,000,000+
Shot-Peened Fatigue Cycles
DIN 2093
Precision Tolerance Standard
650 °C
Superalloy Temperature Rating
Heavy-Duty Mechanics · Performance Comparison
Disc Springs (DIN 2093) vs Traditional Helical Coil Springs
When installation envelope is restricted to millimeters while load demands reach tens of tons, standard helical coil springs are physically incapable of fitting or maintaining constant thermal preloads. Discover the engineering advantages of TOSTA disc springs.
TOSTA Disc Spring AdvantageHelical Coil Spring Limitation
| Evaluation Dimension | TOSTA Precision Disc Springs (DIN 2093) | Standard Helical Compression Springs |
|---|---|---|
| Energy Density & Load CapacityDisc Springs | Extreme energy density! Generates tens of kN up to 100+ tons of axial clamping force in just millimeters of axial height. | Load capacity is constrained by wire diameter and coil pitch; demands massive installation volume and excessive free length. |
| Load-Deflection Curve FlexibilityDisc Springs | Flexible stacking combinations and h₀/t ratios enable linear, progressive, degressive, and zero-stiffness constant load plateaus. | Strictly limited to a single linear Hooke's law slope; unable to deliver variable stiffness or constant preload compensation. |
| Impact Damping & Frictional Energy DissipationDisc Springs | Natural dry-friction damping between parallel stacked discs rapidly dissipates >50% of shock vibration energy. | Coil springs lack inherent friction damping, resulting in severe prolonged high-frequency resonance oscillation. |
| Thermal Creep & Flange Leakage CompensationDisc Springs | h₀/t ≈ 1.414 constant force plateau maintains steady bolt preload during thermal pipe expansion, eliminating flange leaks. | Thermal bolt growth causes destructive over-stressing or cooling shrinkage causes bolt loosening and catastrophic fluid leakage. |
| Failure Mode & Tooling Failsafe RedundancyFailsafe Redundancy | If a single disc fractures in a multi-spring stack, the column still maintains >90% of total clamping force for safe shutdown. | A single coil fatigue fracture leads to total instantaneous loss of spring force, causing catastrophic equipment jamming. |
| Cryogenic & High-Temperature ToleranceDisc Springs | Available in 17-7PH, Inconel 718, and 51CrV4, performing reliably from -200°C cryogenic tanks up to 650°C high-temp turbines. | Standard carbon spring steels experience severe thermal relaxation and loss of temper at temperatures above 150°C~250°C. |
| Suitability for Machine Tool ClampingIndustry Essential | The global industry standard for CNC electro-spindle drawbar tool clamping, elevator safety gears, and wind turbine brakes. | Insufficient stiffness and delayed dynamic response make coil springs unsuitable for ultra-tight high-tonnage locking mechanisms. |
01
Massive Energy Density
Delivers dozens of kNs to hundreds of tons of axial thrust within millimeter heights, providing 15–30x the energy absorption of equivalent coil springs.
02
Modular Stacking Freedom
Parallel stacking multiplies load, series stacking multiplies stroke, and progressive nesting creates multi-staged non-linear force curves.
03
Thermal Creep Prevention
The h₀/t ≈ 1.414 constant load plateau maintains uniform bolt tension during high-temp thermal elongation, preventing pipeline flange leaks.
04
Inherent Friction Damping
Inter-disc sliding friction in parallel stacks creates powerful dry damping that dissipates high-frequency shock energy and eliminates resonance failure.
TOSTA Disc Spring Product Series
From miniature precision discs to multi-ton machined contact flat springs, conforming strictly to DIN 2093 and DIN EN 16983 standards

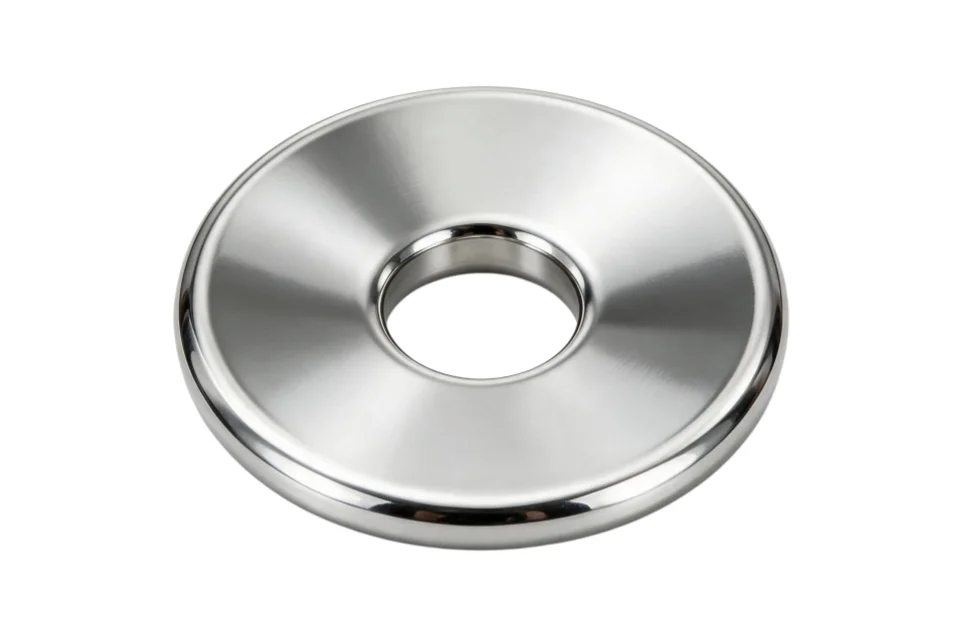

High-Temperature & Anti-Corrosion Disc Springs
Crafted from superalloys including 17-7PH, Inconel 718, Inconel X-750, and Nimonic 90. Operating temperatures from -200°C to +650°C in aggressive acidic, marine, and petrochemical media.
Group 3 Heavy-Duty Disc Springs with Contact Flats
Thickness t > 6.0mm, precision machined with ground planar contact flats on both inner and outer edges to eliminate edge stress concentrations under massive tonnage loads.
Pre-Assembled Stacking Disc Spring Columns
Engineered in parallel (load multiplying), series (stroke multiplying), or progressive combinations with dedicated internal guide mandrels, ready for immediate installation.
Engineering Specification Matrix (DIN 2093)
Covering outer diameters De from 3mm to 500mm, with custom materials including 17-7PH and Inconel 718 available
| Standard Model | Outer Dia. De (mm) | Inner Dia. Di (mm) | Thickness t (mm) | Cone Height h₀ (mm) | 75% Stroke Force F (N) | 75% Deflection s (mm) | Standard Materials |
|---|---|---|---|---|---|---|---|
| DIN 2093 - A 20 | 20.0 | 10.2 | 1.10 | 0.45 | 1,850 | 0.34 | 51CrV4 / 17-7PH |
| DIN 2093 - A 28 | 28.0 | 14.2 | 1.50 | 0.65 | 3,420 | 0.49 | 51CrV4 / 17-7PH |
| DIN 2093 - A 40 | 40.0 | 20.4 | 2.25 | 0.90 | 7,600 | 0.68 | 51CrV4 / 17-7PH |
| DIN 2093 - A 50 | 50.0 | 25.4 | 3.00 | 1.10 | 13,800 | 0.83 | 51CrV4 / Inconel |
| DIN 2093 - A 63 | 63.0 | 31.0 | 3.50 | 1.40 | 19,500 | 1.05 | 51CrV4 / Inconel |
| DIN 2093 - A 80 | 80.0 | 41.0 | 5.00 | 1.80 | 38,200 | 1.35 | 51CrV4 / Inconel |
| DIN 2093 - A 100 | 100.0 | 51.0 | 6.00 | 2.20 | 56,000 | 1.65 | 51CrV4 / Inconel |
Almen-Laszlo Theoretical Equations
Single Disc Load: F = [4E/(1-μ²)] × (t⁴/D²) × (s/t) × [(h₀/t - s/t)(h₀/t - s/2t) + 1] × C₁
Stack Relationships: Parallel: Ftotal = n × F, stotal = s | Series: Ftotal = F, stotal = m × s
Where E is Young's Modulus (206,000 MPa for 51CrV4), μ is Poisson's ratio (0.3), h₀ is cone height, and s is deflection.
Engineering Best Practices
- ✓Deflection Limit (s ≤ 0.75 h₀): Working stroke should not exceed 75% of theoretical cone height h₀ to prevent excessive plastic tensile stresses at the inner edge.
- ✓Guide Mandrel Clearance: Stacked disc columns require a hardened central guide mandrel (≥ HRC 55) with polished surface roughness Ra ≤ 0.8μm.
- ✓Pre-Setting & Shot Peening: Dynamic cyclic applications (e.g. machine tool drawbars) must specify multiple 100% solid pre-setting passes and controlled shot peening.
Technical Knowledge Base · Engineering Whitepapers
In-Depth Disc Spring Engineering Articles
Authored by TOSTA Senior Engineering Specialists: Almen-Laszlo non-linear modeling, flange leak prevention, and drawbar stack optimization
Flange Sealing9 min read
DIN 2093 Disc Springs in High-Temperature Petrochemical Flange Bolting: Zero-Leakage Engineering
Analyzing bolt creep relaxation in thermal cycling piping. How utilizing disc springs with h₀/t ≈ 1.414 constant force plateaus maintains uniform gasket stress across operational lifespans.
TOSTA Heavy-Duty Engineering TeamRead Full Article →
Mechanical Sizing11 min read
Almen-Laszlo Theoretical Load Calculations: Effect of h₀/t Ratios on Degressive and Snap-Through Curves
Rigorous mathematical breakdown of Almen-Laszlo non-linear formulas. Tailoring geometric h₀/t ratios from linear behavior to zero-stiffness horizontal plateaus and bistable mechanisms.
TOSTA Heavy-Duty Engineering TeamRead Full Article →
Stacking Dynamics10 min read
Stacking Configurations (Parallel, Series, Combined): Variable Stiffness & Inter-Disc Damping
Design principles of multiplying force (parallel), multiplying deflection (series), and multi-thickness progressive stacks; evaluating dry-friction damping for high-impact absorption.
TOSTA Heavy-Duty Engineering TeamRead Full Article →
Spindle Drawbars8 min read
CNC Machining Center BT/HSK Spindle Tool Clamping Disc Spring Fatigue Life & Selection Criteria
High-speed electro-spindles endure millions of rapid unclamping cycles. Inside 51CrV4 disc springs with multi-stage shot peening and preset processing exceeding 10,000,000 cycles.
TOSTA Heavy-Duty Engineering TeamRead Full Article →
Typical Critical Applications
Precision high-tonnage preloading across machine tool spindles, petrochemical piping, and heavy braking systems
CNC Spindle Drawbars
BT/HSK 10M+ cycle clamping
High-Temp Flange Bolting
Creep relaxation prevention
Wind Turbine Yaw Brakes
Emergency disc brake calipers
Elevator Safety Gears
Instant high-tonnage lock
Heavy Press Cushioning
Dry friction impact damping
Subsea Control Valves
Inconel 718 anti-corrosion
Related Products & Solutions
TOSTA comprehensive precision spring portfolio — combine different spring types to solve complex engineering challenges
Wave Springs
Same axial-space savings, but suited to light preloading and frequent dynamic cycles — a low-stiffness complement to disc springs.
TOSTA · Precision Industrial Springs
Compression Springs
Standard cylindrical helical compression springs with moderate load and long travel; pair with disc springs to achieve composite-stiffness behavior.
TOSTA · Precision Industrial Springs
Rectangular Springs
Performance overlaps with disc springs in high-stiffness, compact-space scenarios — worth evaluating as an alternative.
TOSTA · Precision Industrial Springs
Nitrogen Springs
Ultra-long life with constant force output; pair with disc springs for heavy demolding systems in stamping dies.
TOSTA · Precision Industrial Springs
Need Heavy-Duty Disc Spring Sizing or Custom Stack Design?
Provide outer diameter, inner diameter, available stack height, and required tonnage. TOSTA engineers deliver Almen-Laszlo theoretical curve verification and stack CAD drawings within 24 hours.
