Relying solely on visual surface coloration to judge whether spring wire has undergone adequate heat treatment is a common pitfall. What truly governs performance is alloy chemical composition, oxide/coating formation kinetics, film adhesion integrity, and standardized mechanical test verification.
Note: Figures represent theoretical mechanical and metallurgical schematics for engineering education.
1. Categorizing Temper Colors, Black Oxide, and Chemical Coatings

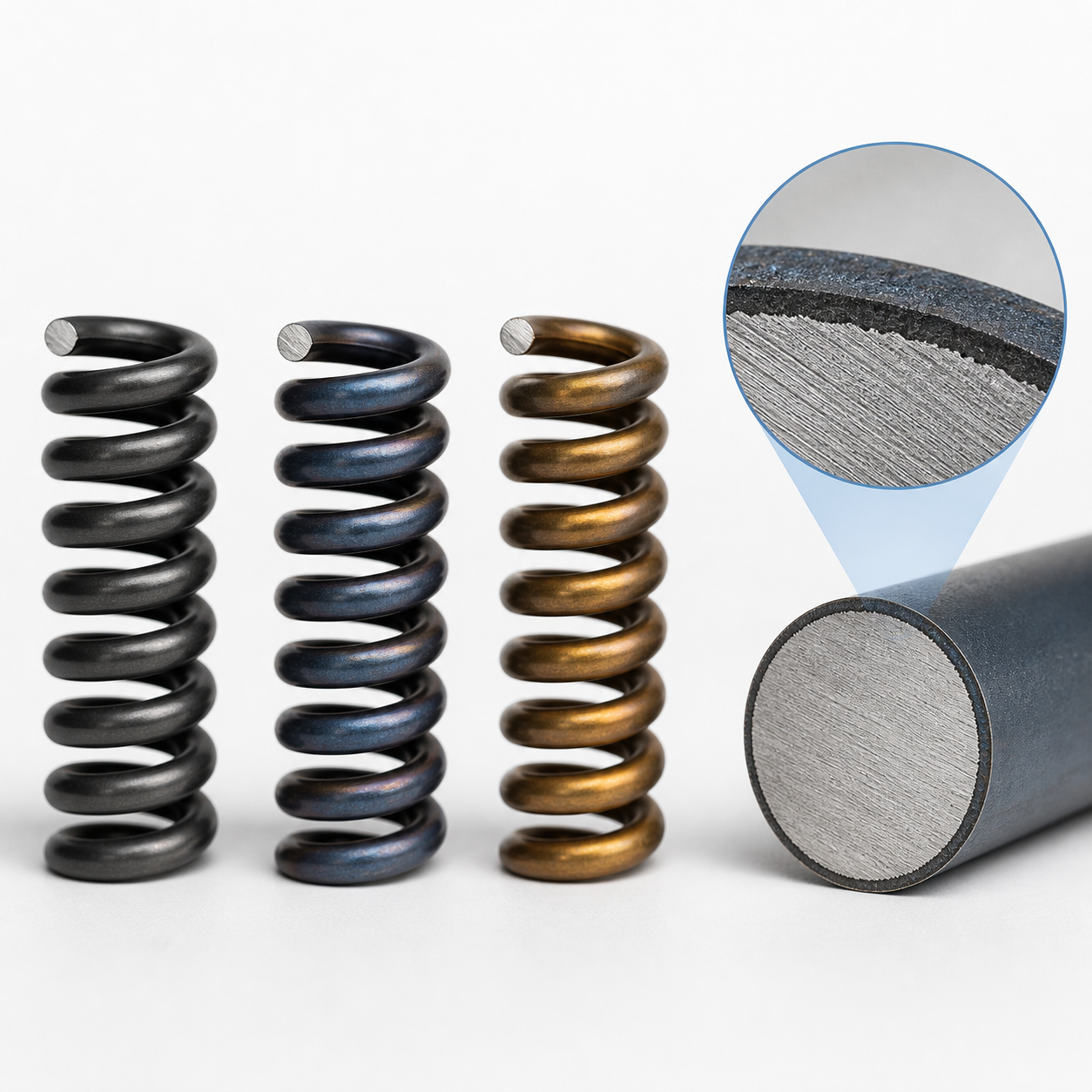

In manufacturing workshops, terminology is frequently jumbled: straw, bronze, purple, blue, black, or gunmetal. Some are natural thermal interference temper colors, some are chemically induced magnetite (Fe3O4) conversion films, and others are diffusion coatings on stainless alloys. Although visually similar, their formation mechanisms and mechanical implications differ fundamentally.
| Visual Appearance | Scientific Mechanism | Intended Function | Engineering Limits |
|---|---|---|---|
| Straw, Bronze, Purple, Blue Temper Colors | Thin oxide films (20–200nm) formed during heating in air. Light interference creates specific reflected colors based on film thickness and refractive index (Raman, 1922; McAdam & Geil, 1939). | Visual indicator of thermal exposure. | Cannot be used as a universal thermometer: alloy chemistry and surface roughness dramatically alter interference hues. |
| Black or Blue-Black Magnetite Film | Controlled chemical blackening or high-temperature steam oxidation forming dense Fe3O4 crystal layers. | Reduces coiling friction, provides mild anti-galling properties, and holds rust-preventative oils. | If loosely adherent, flaky, or overly thick (> 5μm), it chips during coiling, causing dimensional instability. |
| Stainless Steel Blackening via Diffusion | Copper/zinc-coated stainless spring wire subjected to low-temperature annealing, where coating diffusion combines with chromium oxide (Kubo et al., 1995). | Aesthetic differentiation of wire diameters without degrading spring mechanical properties. | Specific to dedicated coating systems; cannot be generalized to uncoated standard stainless wire. |
2. Four Core Factors That Cause Wire Color Variations
1. Base Alloy Chemistry
Elements such as silicon, chromium, and manganese alter oxidation diffusion rates. Research on 55SiCr spring wire shows multi-layered oxide structures with inner Cr/Si enrichment. Switching steel grades fundamentally alters color response.
2. Temperature & Dwell Time
Oxide film thickness grows as a parabolic function of temperature and time. Surface coloration merely proves that surface oxidation occurred, not that the core microstructure reached homogeneous martensitic or bainitic transformation.
3. Furnace Atmosphere

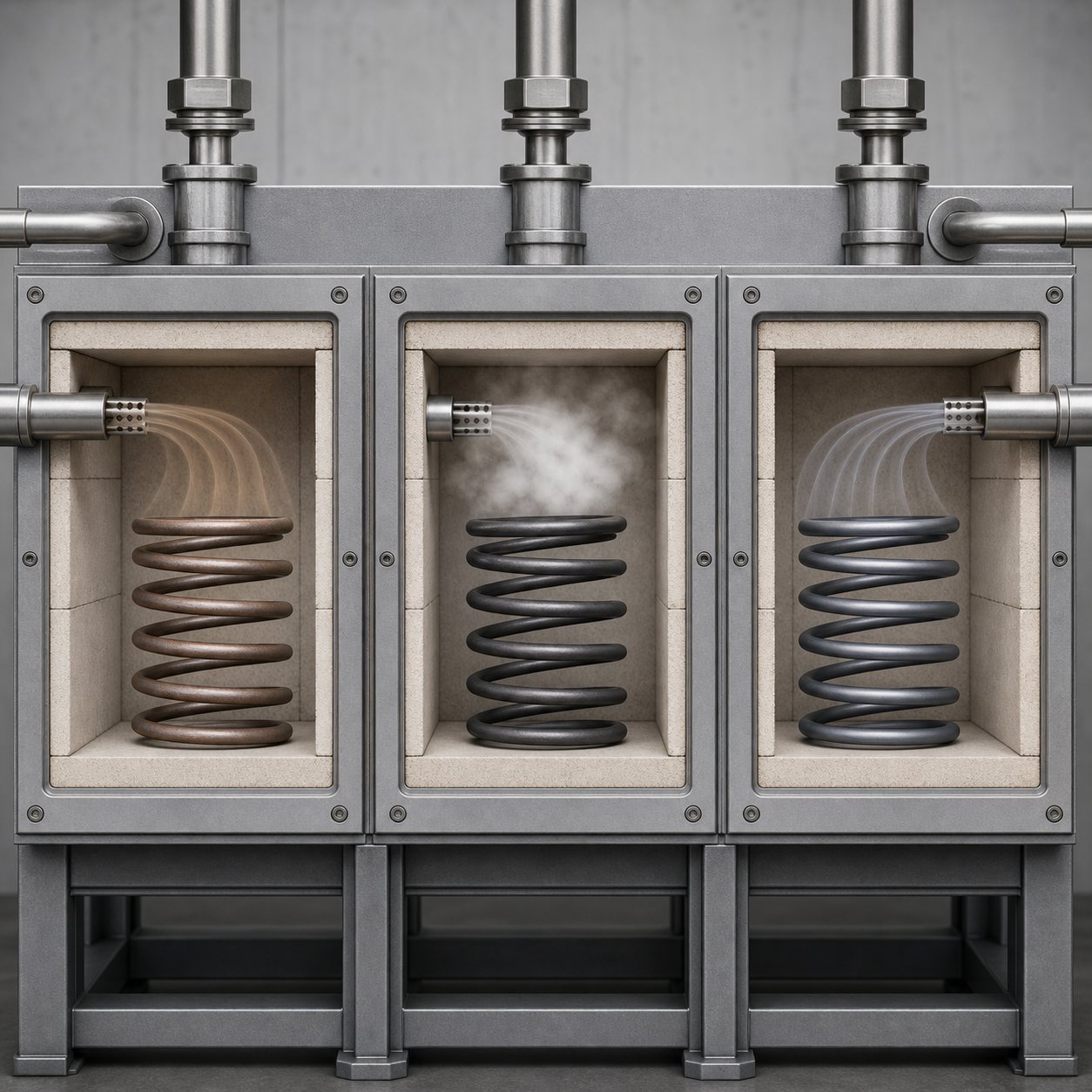

Oxygen partial pressure, moisture content, steam, and protective nitrogen/argon atmospheres dictate oxide composition. The same spring wire turns golden-brown in atmospheric air but deep black in superheated steam.
4. Surface Pre-Treatment State
Shot peening, drawing lubricant residues, acid pickling, phosphate conversion, and micro-roughness alter nucleation sites. Contaminated surfaces result in mottled, blotchy, or pitted color patterns.
3. Engineering Utility vs. Common Misconceptions
Valid Engineering Uses
- Rapid Visual In-Line Screening: Color shifts serve as a rapid first-pass flag for furnace air leaks, temperature sensor drift, or degreasing failures.
- Coiling Lubrication & Stability: Academic studies on spring wire coiling indicate that a dense, uniform oxide layer reduces friction against carbide coiling pins, stabilizing outside diameter (OD) pitch.
- Diameter Identification: Specific blackening systems allow visual separation of adjacent spring sizes during manual assembly.
The Top Three Misjudgments to Avoid
- Equating color directly to tempering temperature or hardness: Film thickness is an optical interference phenomenon dependent on alloy and surface finish; it is never a calibrated hardness reading.
- Assuming a black surface guarantees adequate corrosion resistance:Unsealed black oxide provides minimal salt-spray protection (< 2 hours). Rust protection depends on oil sealers or phosphate coatings.
- Assuming uniform surface aesthetics guarantee high fatigue life: Fatigue strength is governed by non-metallic inclusion cleanliness, surface decarburization depth, residual stresses, and micro-defects—not optical shine.
4. Technical & Procurement Quality Inspection Checklist
Academic References & Standards
- C. V. Raman, “The Colours of Tempered Steel,” Nature 109, 105–106 (1922).
- D. J. McAdam Jr. & G. W. Geil, “Rate of oxidation of steels as determined from interference colors of oxide films,” Journal of Research of the National Bureau of Standards 23, 63 (1939).
- H. Zhang et al., “Effect of surface treatment on oxidation film of 55SiCr spring steel wire,” Journal of Physics: Conference Series 2873, 012040 (2024).
- T. Kubo et al., “Development of stainless steel spring wire colored black during spring manufacturing process,” Transactions of the Japan Spring Manufacturers Association 40, 1–4 (1995).
- G. T. Alliott, R. L. Higginson & G. D. Wilcox, “Producing a thin coloured film on stainless steels – a review. Part 2: non-electrochemical and laser processes,” Transactions of the IMF (2023).
Need Verification of Wire Chemistry, Heat Treatment & Surface Coatings?
TOSTA provides comprehensive batch reports aligning mill test certificates (MTRs), furnace atmosphere records, and metallurgical cross-section inspections.
