Extra Light Load Yellow Series (1L / Yellow)
Conforming to ISO 10243 specifications with up to 50% maximum deflection. Ideal for long-stroke, light-pressure stamping, electronics hardware dies, and return mechanisms.
ISO 10243 Standard Color Coding · High Energy Density Profile · 1M to 3M Press Cycles
Industrial ISO 10243 Rectangular Die Springs
Strictly engineered to ISO 10243 international standards. Cold-coiled from specialized trapezoidal pre-deformed wire, providing over 50% higher energy density than round wire springs. Five standardized color-coded load classes (Yellow, Blue, Red, Green, Brown) for high-speed stamping and injection mold tooling.
+50%
Energy Density vs Round Wire
ISO 10243
5-Tier Color Coded Standards
3,000,000+
Shot-Peened Press Cycle Life
≤ 1.0°
Ground End Squareness Tolerance
Stamping Tool Evolution · Performance Benchmark
Rectangular Die Springs (ISO 10243) vs Round Wire Springs
Standard round wire springs leave large gaps inside cylindrical pockets, reducing energy density while severe inner-edge stress concentrations lead to early fatigue fractures. Discover why TOSTA rectangular die springs are the choice of toolmakers.
TOSTA Die Spring AdvantageRound Wire Spring Limitation
| Evaluation Dimension | TOSTA ISO 10243 Rectangular Die Springs | Standard Round Wire Compression Springs |
|---|---|---|
| Cross-Section Space & EnergyDie Springs | Rectangular cross-section tightly fills cylindrical holes, yielding 45%~60% more energy storage than round wire springs. | Round wire profile leaves large empty gaps between adjacent coils, resulting in poor volumetric energy density. |
| Die Shut Height & Pocket DepthDie Springs | Significantly shorter free length for identical force and travel; cuts machined die shoe pocket depths by 30%~40%. | Demands deep pockets and massive spring banks, making stamping tools excessively tall, heavy, and costly to machine. |
| Inner Edge Stress ConcentrationDie Springs | Cold-coiled trapezoidal pre-deformed wire with radius corners eliminates internal shear stress concentrations. | Round wire undergoes intense inner surface tensile compression when tightly wound, creating premature fatigue micro-cracks. |
| ISO 10243 Visual Color CodingISO Colors | Yellow, Blue, Red, Green, and Brown color coding provides instant visual identification, eliminating assembly mix-ups. | Lacks standardized load color coding; production floor mix-ups between spring stiffness rates frequently cause tool breakage. |
| Epoxy Coating & Oil ResistanceDie Springs | High-adhesion electrostatic epoxy powder coating withstands heavy press impacts, stamping oils, and temperatures up to 200°C. | Ordinary black oxide or electroplating chips off easily under impact; acid pickling poses dangerous hydrogen embrittlement risks. |
| End Squareness & Anti-BucklingDie Springs | Precision ground closed ends with perpendicularity ≤ 1.0°, ensuring true axial compression without lateral buckling or hole scuffing. | Rough or unground wire ends create lateral eccentric moments, causing the spring to bow and gall against mounting hole walls. |
| High-Speed Press Fatigue LifeDie Springs | Undergoes 3x 100% solid pre-setting passes and deep shot peening, delivering 1,000,000 to 3,000,000 high-speed press strokes. | Standard commercial coil springs without deep pre-setting suffer early fatigue fracture within 200,000 to 300,000 cycles. |
01
+50% Energy Storage
Rectangular profile fills the cylindrical mounting pocket tightly, delivering over 50% more force and cutting die shoe pocket depths by 30%~40%.
02
ISO 10243 Color Coding
Five-tier international standard load color coding provides visual assembly verification, preventing tooling mix-ups and catastrophic die crashes.
03
Radius Corner Anti-Cracking
Precision rolled radius corners on the wire profile disperse flexural shear stress, eliminating stress concentrations along the inner diameter.
04
Ground End Squareness
Dual ends precision ground to perpendicularity ≤ 1.0°, ensuring perfect axial load alignment and eliminating lateral buckling or pocket wall scuffing.
TOSTA Die Spring Standard Series
Fully conforming to ISO 10243 standards across Yellow (1L), Blue (2L), Red (3M), Green (4H), and Brown (5EH) load ratings
Light Load Blue Series (2L / Blue)
The most universally applied die spring worldwide, with 40% maximum deflection. Widely utilized in automotive stamping strippers, progressive dies, and pressure plates.
Medium Load Red Series (3M / Red)
High-stiffness die spring offering up to 32% maximum deflection, engineered for heavy gauge sheet blanking, bending tools, and high-frequency stamping press operations.

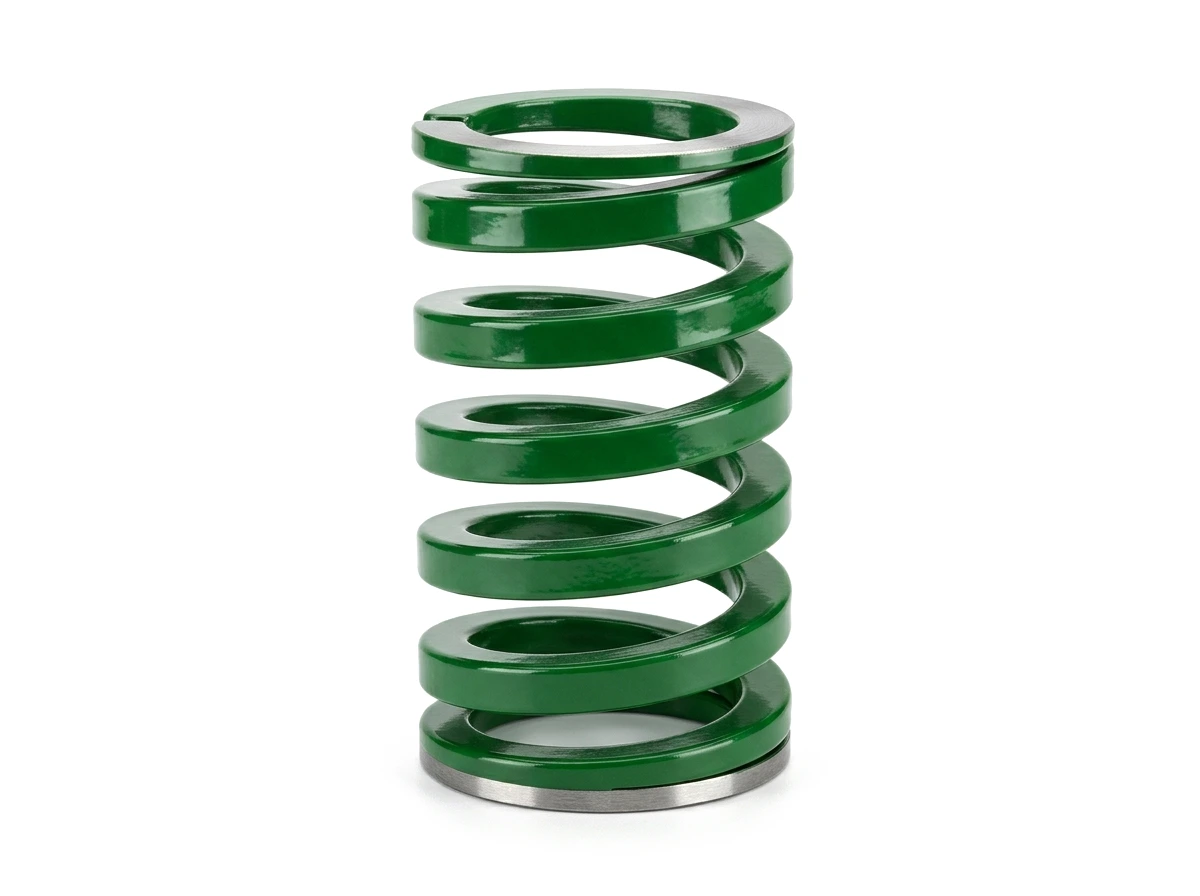

Heavy Load Green Series (4H / Green)
Engineered to ISO 10243 specifications with up to 24% maximum deflection. Designed for heavy automotive structural steel, high-tensile sheet blanking, and high-tonnage die strippers.
Extra Heavy Load Brown Series (5EH / Brown)
Maximum tonnage die spring class with up to 20% maximum deflection. Built for ultra-high-strength steel (UHSS) cold stamping, heavy bending tools, and large injection mold slide returns.
Engineering Specification Matrix (ISO 10243)
Outer diameters from 10mm to 63mm, lengths from 25mm to 305mm, coiled from high-grade silicon-chrome spring steel (55CrSi / 50CrV4)
| Standard Code | Color Class | Outer Dia. D (mm) | Hole Dia. d (mm) | Free Length L₀ (mm) | Spring Rate k (N/mm) | Max Deflection (mm) | Max Load Fmax (N) |
|---|---|---|---|---|---|---|---|
| 1L 25-050 | Yellow (Extra Light) | 25.0 | 12.5 | 50.0 | 28.5 | 25.0 | 712 |
| 1L 32-075 | Yellow (Extra Light) | 32.0 | 16.0 | 75.0 | 45.0 | 37.5 | 1,687 |
| 1L 40-100 | Yellow (Extra Light) | 40.0 | 20.0 | 100.0 | 68.0 | 50.0 | 3,400 |
| 2L 25-050 | Blue (Light) | 25.0 | 12.5 | 50.0 | 52.0 | 20.0 | 1,040 |
| 2L 32-075 | Blue (Light) | 32.0 | 16.0 | 75.0 | 82.5 | 30.0 | 2,475 |
| 2L 40-100 | Blue (Light) | 40.0 | 20.0 | 100.0 | 125.0 | 40.0 | 5,000 |
| 2L 50-125 | Blue (Light) | 50.0 | 25.0 | 125.0 | 192.0 | 50.0 | 9,600 |
Die Spring Output Force Equations
Total Output Force: F = k × (S_preload + S_working)
Maximum Stroke Limit: S_total ≤ S_max (50% / 40% / 32% / 24% / 20%)
Where k is spring rate (N/mm). Maximum allowable working deflection limits for Yellow, Blue, Red, Green, and Brown are 50%, 40%, 32%, 24%, and 20% of free length respectively.
Tooling Installation Best Practices
- ✓Always Maintain 10%–15% Preload: Never install die springs in an un-preloaded loose state. Initial pre-travel prevents bouncing impact shocks during press return.
- ✓Chamfer Mounting Pocket Bottoms: Ensure die pocket bottoms are perpendicular with small corner fillet radii to eliminate sharp edge fretting wear.
- ✓Never Mix Spring Colors in One Tool: Mixing different color ratings under one stripper plate creates severe load imbalances, causing blank wrinkling and tool jamming.
Technical Knowledge Base · Engineering Whitepapers
In-Depth Die Spring Engineering Articles
Authored by TOSTA Stamping Tooling Specialists: color coding sizing, energy density comparison, and failure prevention guidelines
Selection Guide9 min read
ISO 10243 Stamping Die Spring Color Coding System & Operational Cycle Life Selection
Rigorous technical analysis of Yellow, Blue, Red, Green, and Brown load ratings and their corresponding maximum deflection percentages (50% to 20%) to prevent over-travel fatigue failure.
TOSTA Stamping Tooling TeamRead Full Article →
Mechanics Sizing11 min read
Why Rectangular Cross-Section Springs Store 50% More Mechanical Energy Than Round Wire
Geometric cavity packing analysis: how trapezoidal wire profiles deform into true rectangular cross-sections upon coiling, distributing shear stress uniformly and eliminating inner edge crack initiation.
TOSTA Stamping Tooling TeamRead Full Article →
Failure Prevention10 min read
Root Cause Analysis of Die Spring Fractures: Over-Travel, Side-Load, and Fretting Fatigue
Field failure case studies: how press ram angular deflection, lack of 10%–15% pre-travel clamping, and un-chamfered pocket edges lead to premature spring failure, and how to engineer preventive fixes.
TOSTA Stamping Tooling TeamRead Full Article →
Tooling Design8 min read
Preload and Guidance Standards for Rectangular Die Springs in High-SPM Progressive Tooling
Why die springs must always maintain initial 10%–15% pre-travel. Guide rod clearance standards and pocket depth tolerances to eliminate lateral buckling and coil scuffing at 300+ SPM.
TOSTA Stamping Tooling TeamRead Full Article →
Typical Critical Applications
Precision preloading across automotive stamping presses, progressive metal dies, and plastic injection molds
Automotive Stamping Dies
Heavy tonnage stripping & holding
Progressive Transfer Dies
Continuous high SPM stamping
Injection Mold Slides
Smooth lateral slide core reset
Heavy Press Shearing
Impact shock dampening
Sheet Bending & Forming
Accurate bottom dead center force
Mining & Heavy Machinery
High-impact wear resistance
Related Products & Solutions
TOSTA comprehensive precision spring portfolio — combine different spring types to solve complex engineering challenges
Wave Springs
Same wave + compact-space story — the preferred substitute when stiffness requirements are lower.
TOSTA · Precision Industrial Springs
Disc Springs
The standard solution for high-stiffness scenarios; partially overlapping load ranges make them interchangeable in some applications.
TOSTA · Precision Industrial Springs
Compression Springs
Cost-effective for medium-stiffness, long-travel scenarios — an economical alternative to rectangular springs.
TOSTA · Precision Industrial Springs
Nitrogen Springs
Ultra-long life with constant force; pair with rectangular springs for heavy die and heavy-duty buffer systems.
TOSTA · Precision Industrial Springs
Need Die Spring Sizing Calculations or Volume Orders?
Provide press cycle rate, working deflection travel, hole diameter, or target stripping tonnage. TOSTA engineers provide sizing sheets and 3D CAD files within 24 hours.
