Strictly engineered to DIN 2098-1 and ISO 10243 precision manufacturing standards. Formed from premium music wire (SWP-B), oil-tempered chrome-silicon steel (55CrSi), and high-temp superalloys. Enhanced by triple solid-height presetting, CNC vertical end grinding, and controlled micro-shot peening for ±3% load repeatability and zero relaxation.
Compression springs may appear simple, but in high-speed solenoid valves, automotive injectors, and robotic joints, commercial-grade spring defects—eccentric squareness, erratic load variance, and height settling—cause catastrophic machinery failures. TOSTA defines Class 1 precision excellence.
| Evaluation Dimension | TOSTA Class 1 Precision Compression Springs | Commercial Grade Rough Coiled Springs |
|---|---|---|
| End Grinding & Squareness ToleranceTOSTA Springs | Dual-end 360° precision ground (3/4-turn face flat), squareness ≤ 1.0°, ensuring strictly axial load distribution with zero lateral bending. | Ungrung or rough hand-ground ends create severe eccentric bending moments, causing heavy sidewall guide bushing scuffing and jamming. |
| Load Force Tolerance (Accuracy)±3% Tolerance | 100% automated high-speed CCD load testing and sorting, maintaining load tolerance tightly within ±3% for synchronized multi-spring tooling. | No automated load testing; batch variance reaches ±12%~20%, resulting in unbalanced mechanism actuation and premature wear. |
| Stress Relaxation & Permanent SetZero Set | 100% subjected to 3 cycles of solid-height presetting (scragging) to eliminate residual inner stresses, ensuring zero load relaxation. | Without thorough presetting, springs undergo 5%~10% permanent height loss upon first heavy loading cycle. |
| Controlled Shot Peening & Fatigue Life10M+ Cycles | Controlled micro-shot peening imparts up to -800 MPa compressive residual surface stresses, achieving >10,000,000 cycle endurance. | Surface cold-drawing micro-scratches left untreated rapidly propagate into fatigue fracture within hundreds of thousands of strokes. |
| Superalloy Engineering CapabilitySuperalloys | Full in-house vacuum solution and precipitation hardening capabilities for Inconel 718, Nimonic 90, Titanium, and 316LVM. | Limited to standard carbon spring steel; rusts rapidly in humid environments and suffers extreme thermal relaxation above 120°C. |
| Anti-Resonance & Variable PitchAnti-Resonance | Tailored variable pitch and conical architectures shift natural frequencies away from machine operating harmonics, reducing high-speed noise. | Standard uniform pitch springs easily undergo severe harmonic resonance at critical speeds, causing catastrophic fracture. |
| Surface Treatment & Hydrogen EmbrittlementNon-Embrittling | Eco-friendly non-embrittling Dacromet, electroless nickel, PTFE coating, and Class 100 ultrasonic degreasing for medical & aerospace. | Crude oil coating attracts abrasive dust; acid pickling without post-plating de-embrittlement baking causes delayed brittle fracture. |
Both ends are precision ground to perpendicularity ≤ 1.0°, ensuring centered axial force with zero tilting or bore scuffing.
Every batch undergoes 3 cycles of solid-height presetting to relieve internal stress, ensuring zero settling and lifelong height stability.
High-speed automated optical load sorting guarantees tight batch repeatability, ideal for synchronized multi-spring actuation.
Deep compressive residual surface stresses (-800 MPa) extend dynamic cycle life beyond 10 million cycles, preventing premature fatigue.
From sub-millimeter micro springs to heavy industrial power compression units, conforming strictly to DIN 2098 and JIS B 2704 standards
Manufactured to DIN 2098-1 and JIS Class 1 precision standards. Features 360° closed and ground ends (perpendicularity ≤ 1.0°), providing perfectly centered axial support for automated machinery and precision instruments.

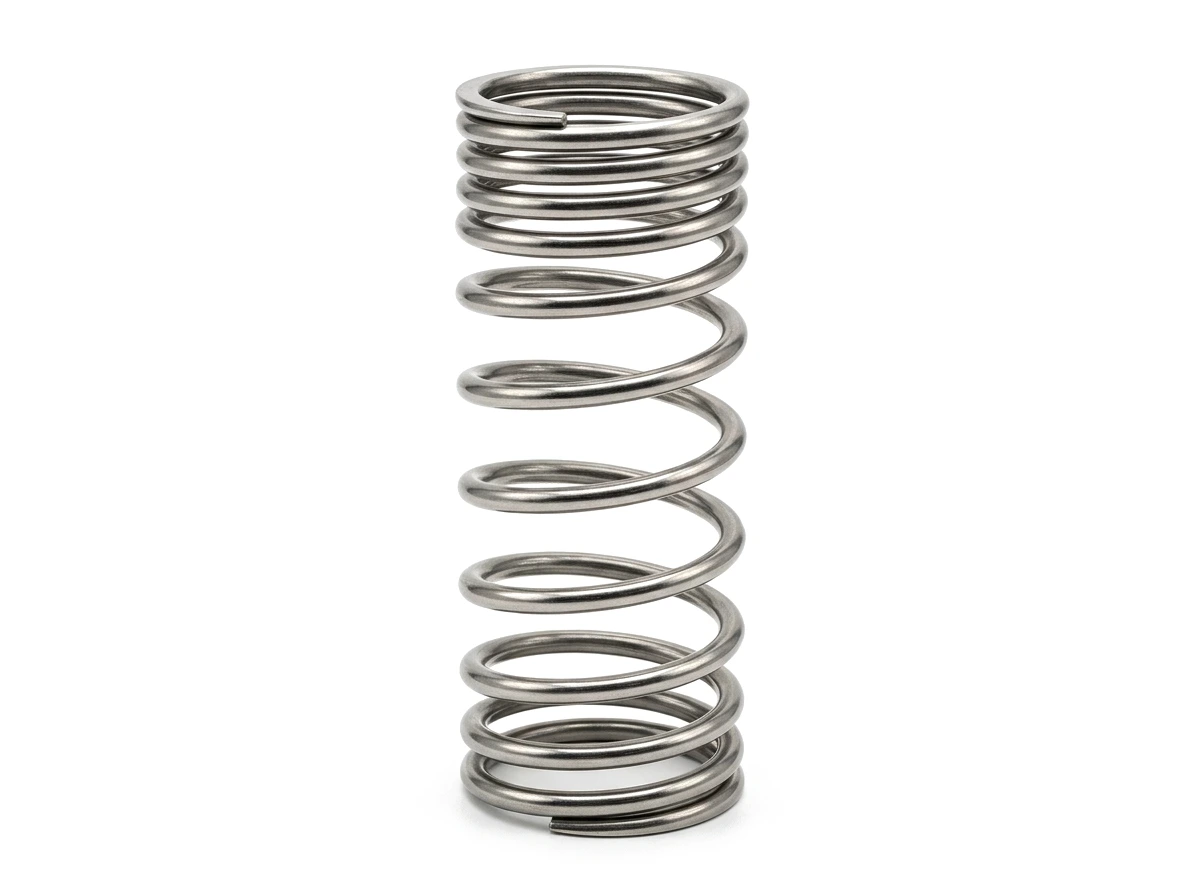

Engineered with progressive or dual pitch coils. Active coils change dynamically under compression to yield a non-linear progressive rate, disrupting fixed harmonic frequencies and eliminating resonance fracture.

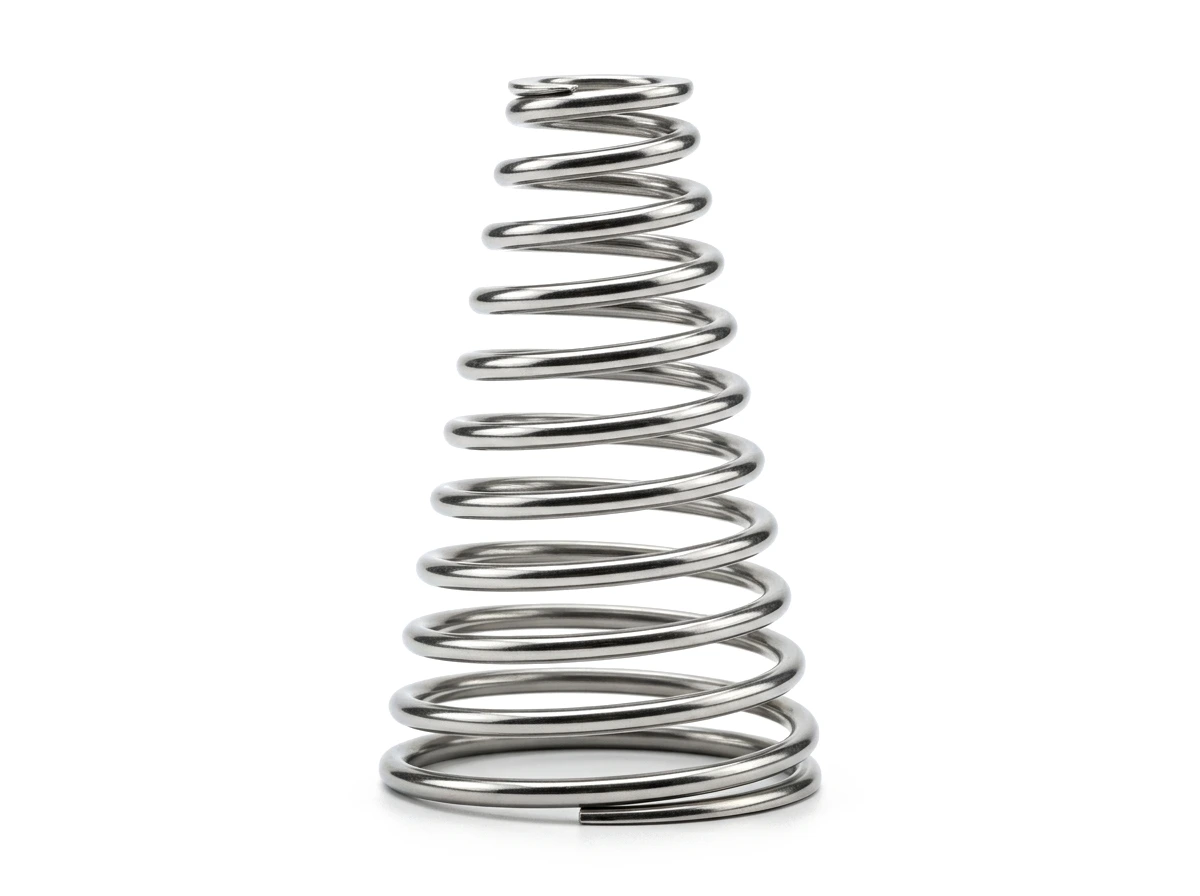

Tapered outer diameter allows coils to telescope within each other during compression, collapsing solid height down to approximately a single wire diameter for ultra-confined axial envelopes.

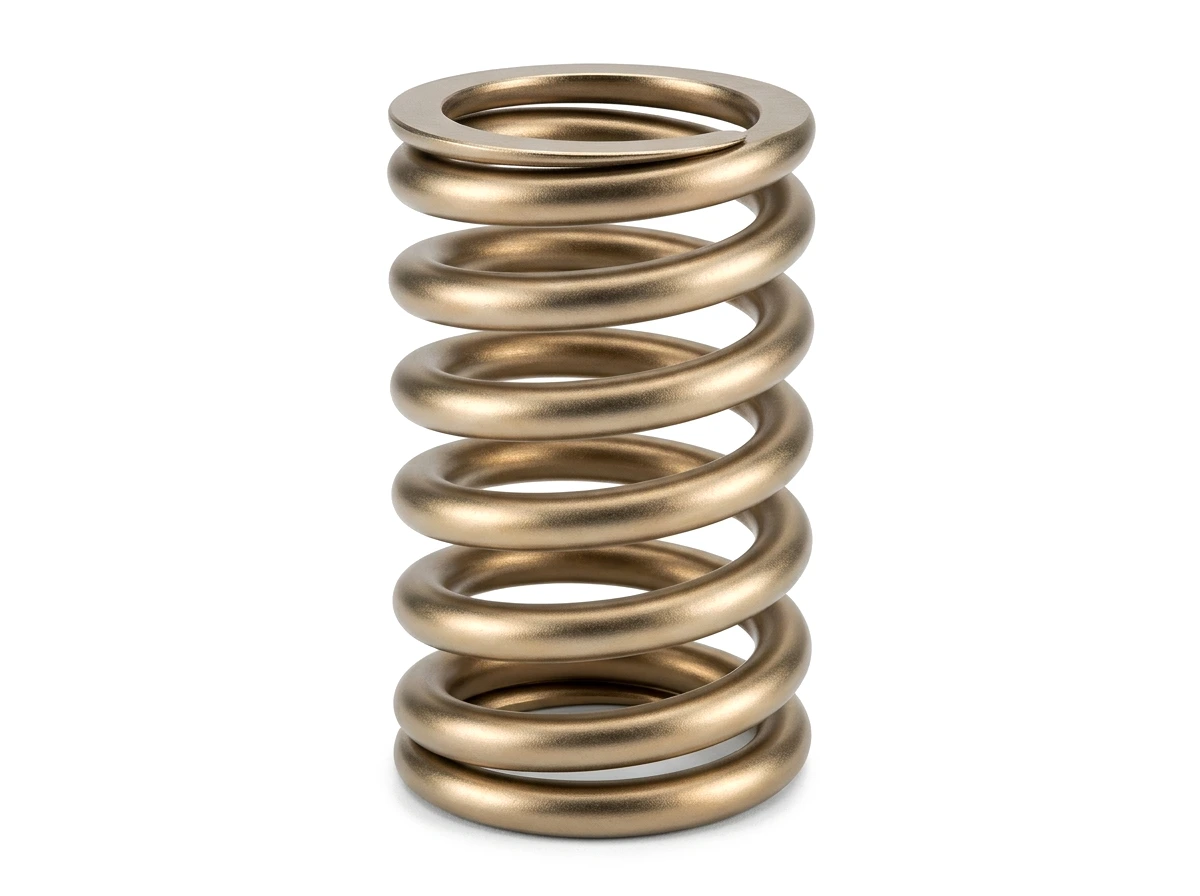

Formed from Inconel X-750, Inconel 718, Hastelloy C-276, Titanium Grade 5, and medical-grade 316LVM. Engineered for cryogenic to 600°C operation in acid, alkali, and marine salt-fog environments.
Customizable wire diameters (d 0.1mm~30mm), variable pitch geometries, custom end finishes, and protective coatings
| Standard Part No. | Wire Dia. d (mm) | Outer Dia. OD (mm) | Free Length L₀ (mm) | Active Coils n | Spring Rate k (N/mm) | Max Deflection (mm) | Max Load Fmax (N) |
|---|---|---|---|---|---|---|---|
| MC 05-020 | 0.50 | 4.0 | 20.0 | 9.5 | 1.25 | 11.0 | 13.8 |
| MC 08-025 | 0.80 | 6.0 | 25.0 | 8.5 | 3.40 | 13.5 | 45.9 |
| MC 10-030 | 1.00 | 8.0 | 30.0 | 7.5 | 5.80 | 16.0 | 92.8 |
| MC 12-040 | 1.20 | 10.0 | 40.0 | 8.0 | 7.50 | 22.0 | 165.0 |
| MC 15-050 | 1.50 | 12.0 | 50.0 | 8.5 | 12.20 | 27.0 | 329.4 |
TOSTA senior engineering team shares decades of precision manufacturing expertise across ground ends, Wahl stress factors, resonance damping, and superalloy selection
Why precision ground face thickness must achieve 3/4 of the wire diameter. An in-depth failure analysis of eccentric bending moments, guide rod galling, and premature fracture caused by unground springs.
Detailed derivation of the inner fiber stress concentration factor K=(4C-1)/(4C-4)+0.615/C. Integrating cyclic Goodman fatigue diagrams to calculate true safety margins under multi-million cycle loading.
Standard uniform-pitch springs easily suffer fatigue fracture from high-frequency resonance. Explore the mechanics of progressive rate variation through dynamic coil collapse and energy absorption design.
Covering elastic modulus shifts across -200°C to 600°C, high-temperature creep relaxation, and vacuum melting quality. Comparing 55CrSi, 17-7PH, and Inconel 718 under aggressive operating conditions.
Widely specified across automotive powertrains, precision medical devices, humanoid robotics, and high-pressure valves
TOSTA comprehensive precision spring portfolio — combine different spring types to solve complex engineering challenges

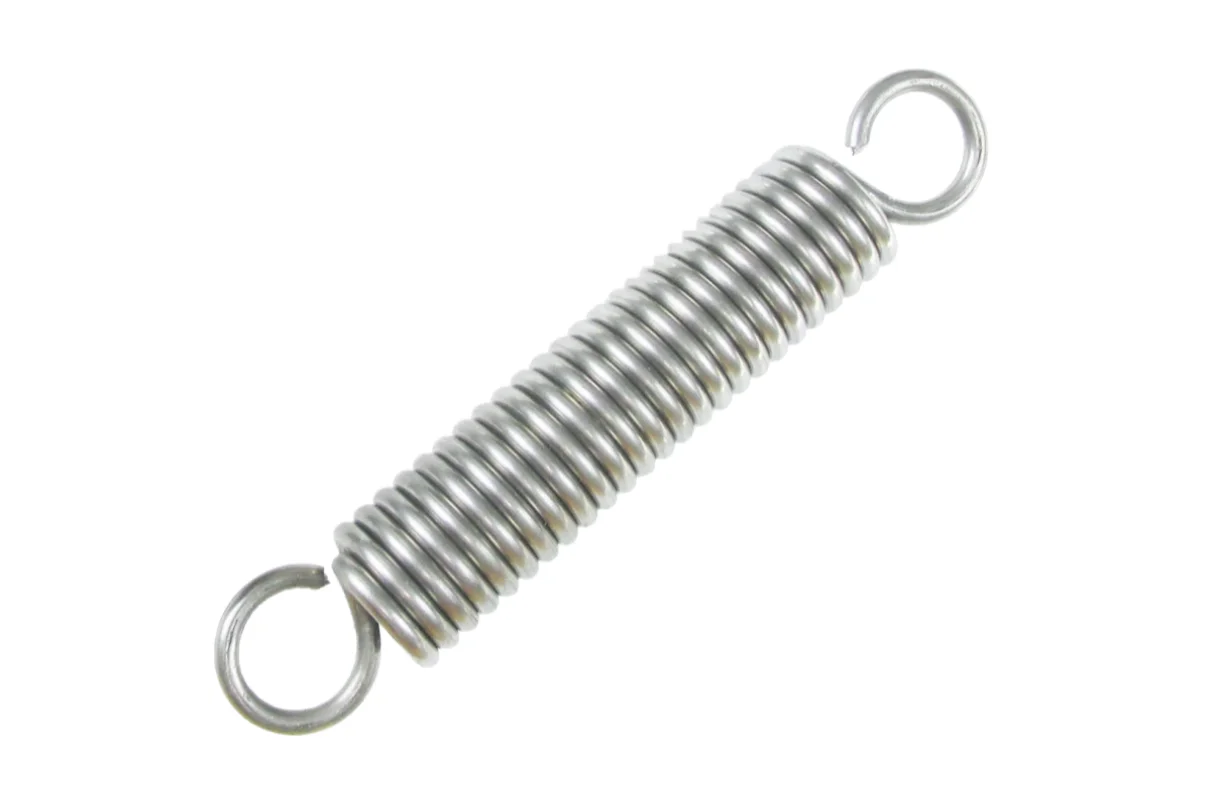

Complementary axial elements that cover both push and pull — the most common combination in engineering practice.
TOSTA · Precision Industrial Springs
Convert axial force into rotational torque; together with compression springs they form rotation + translation composite elastic solutions.
TOSTA · Precision Industrial Springs
Save 50% of axial space — a compact alternative when buffering in tight envelopes.
TOSTA · Precision Industrial Springs
High load with small deflection; fills the gap when compression springs cannot handle heavy-load, small-displacement conditions.
TOSTA · Precision Industrial Springs
Breaks the round-wire stiffness ceiling for compact designs that demand high stiffness.
TOSTA · Precision Industrial Springs
Submit your wire diameter, outer diameter, free length, operating force, and material requirements. TOSTA engineers provide detailed load-deflection calculations within 2 hours, with rapid prototype delivery within 24 hours.
